What a D-SUB Connector Really Does (In Real Life)
Most people have seen a D-SUB connector before — the familiar D-shaped metal shell with multiple pins.
But in many machines, especially industrial and medical devices, it still plays a very practical role.
At the simplest level, a D-SUB is used for stable, low-noise, wired communication between different parts of a system.
It carries things like:
-
control signals
-
data lines
-
motor commands
-
sensor feedback
-
module-to-module communication
It’s old, yes — but it’s reliable, secure, and easy to maintain.
That’s why engineers still use it.
🩺 A Real Example: Inside a Medical Printer
Take a medical film or label printer.
Inside, motors, heaters, sensors, and the controller board all have to stay perfectly synchronized.
A D-SUB connector is often the link that keeps everything talking to each other.
If the signals stay stable, the film is printed correctly.
If not, the machine stops, and someone has to redo the job.
It’s not high-tech drama — just everyday engineering.

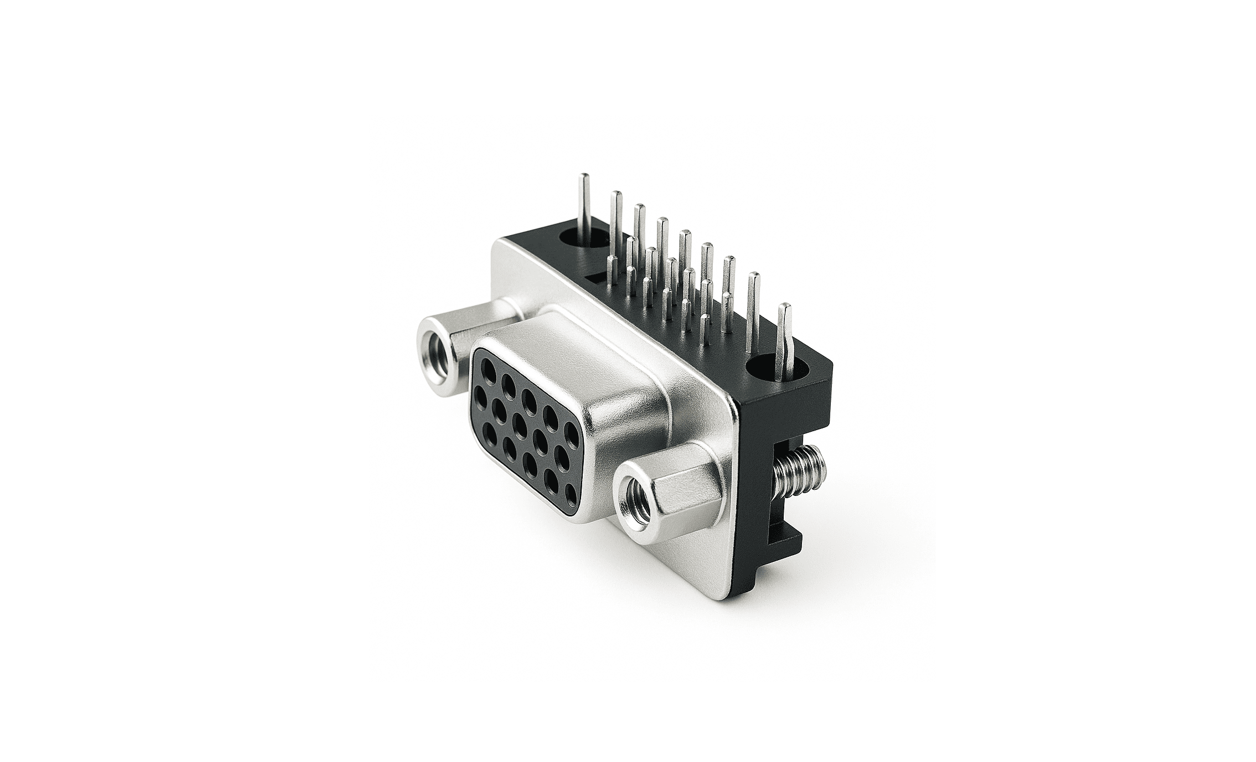

🔧 The Version We Use (D01-C124-15001)
This specific D-SUB receptacle is built in a straightforward, practical way:
-
metal shell for shielding
-
screw-lock for vibration resistance
-
gold-plated pins for clean contact
-
consistent insulation and low contact resistance
Full Specification: https://walta.com.tw/products/d01-c124-15001-d-sub-receptacle/
Nothing flashy — just the essentials done properly.
It works well in:
-
medical printers
-
lab and testing devices
-
industrial control boards
-
POS and automation equipment
Places where you simply need the connection to work and keep working.
📌 Why Engineers Still Trust D-SUB?
Because sometimes the simplest interface is the most predictable one.
You can troubleshoot it easily, it doesn’t get affected by noise easily, and it survives years of use.
Not everything needs to be reinvented.
Some things just need to be built right.
